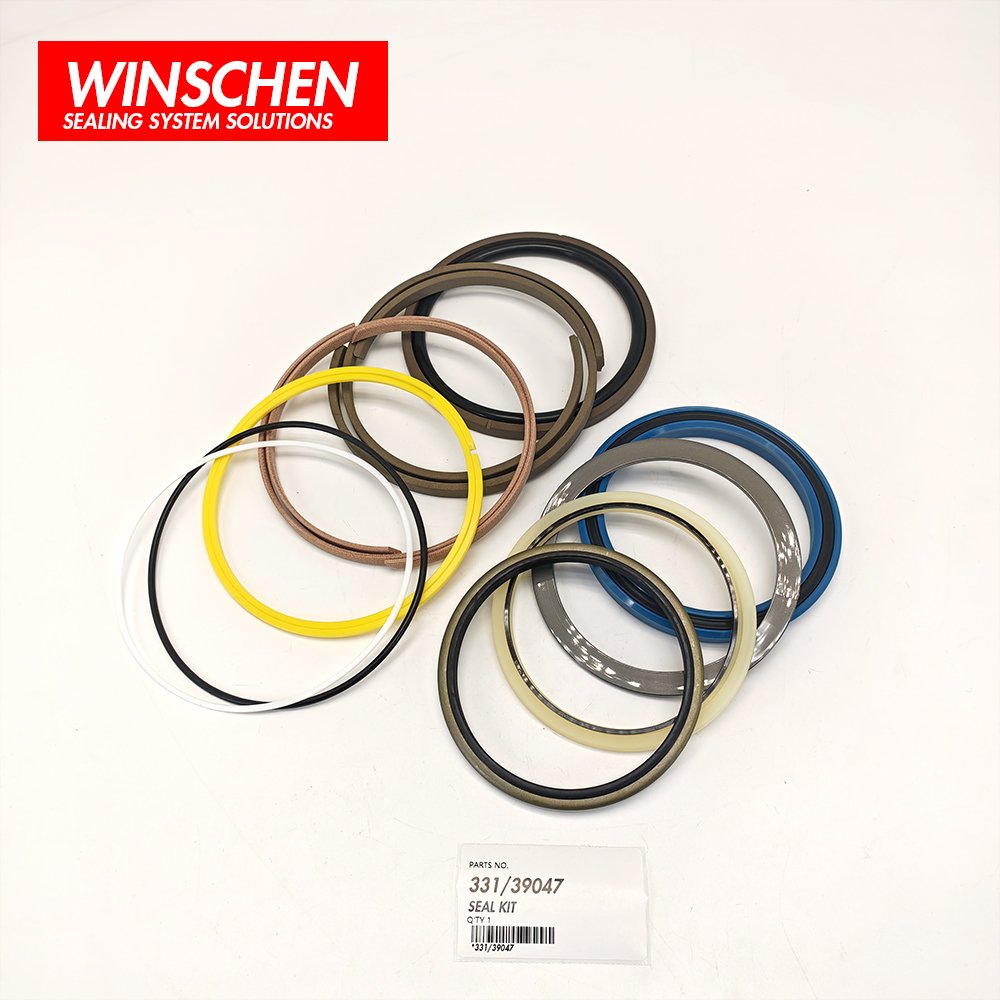

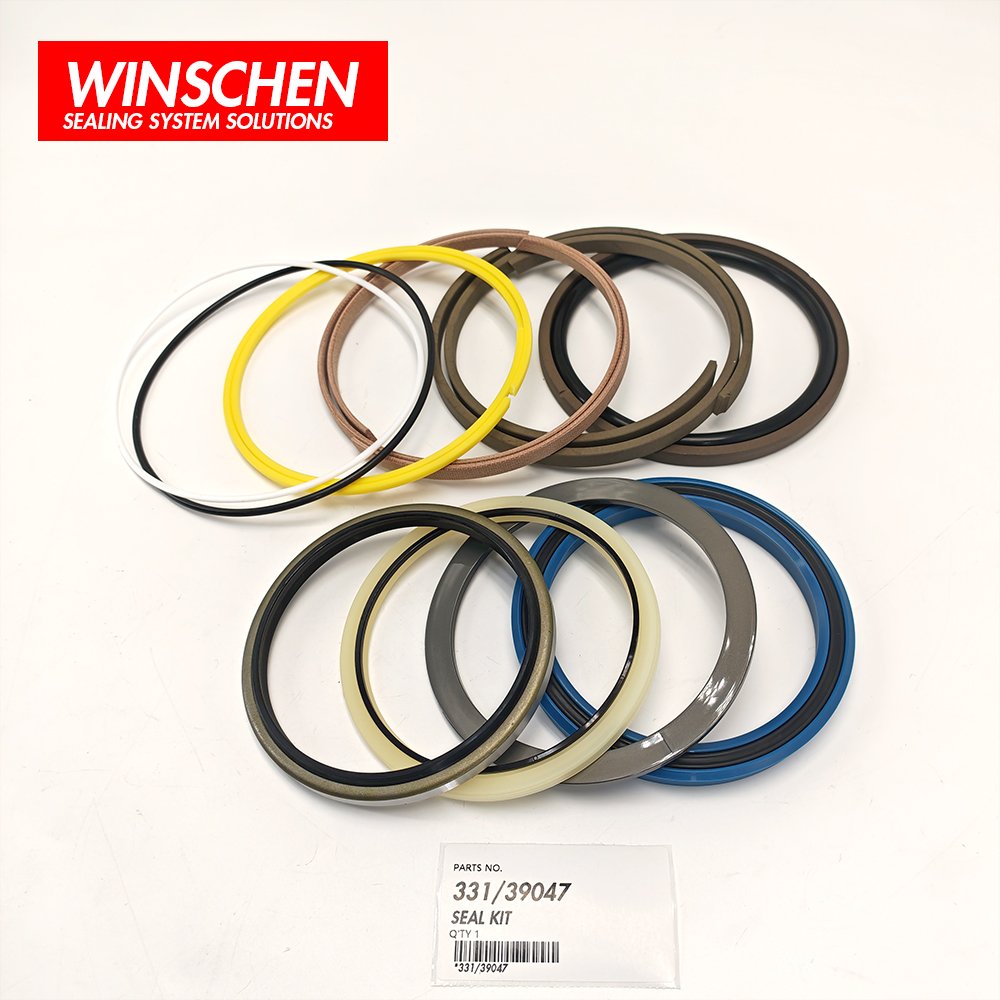

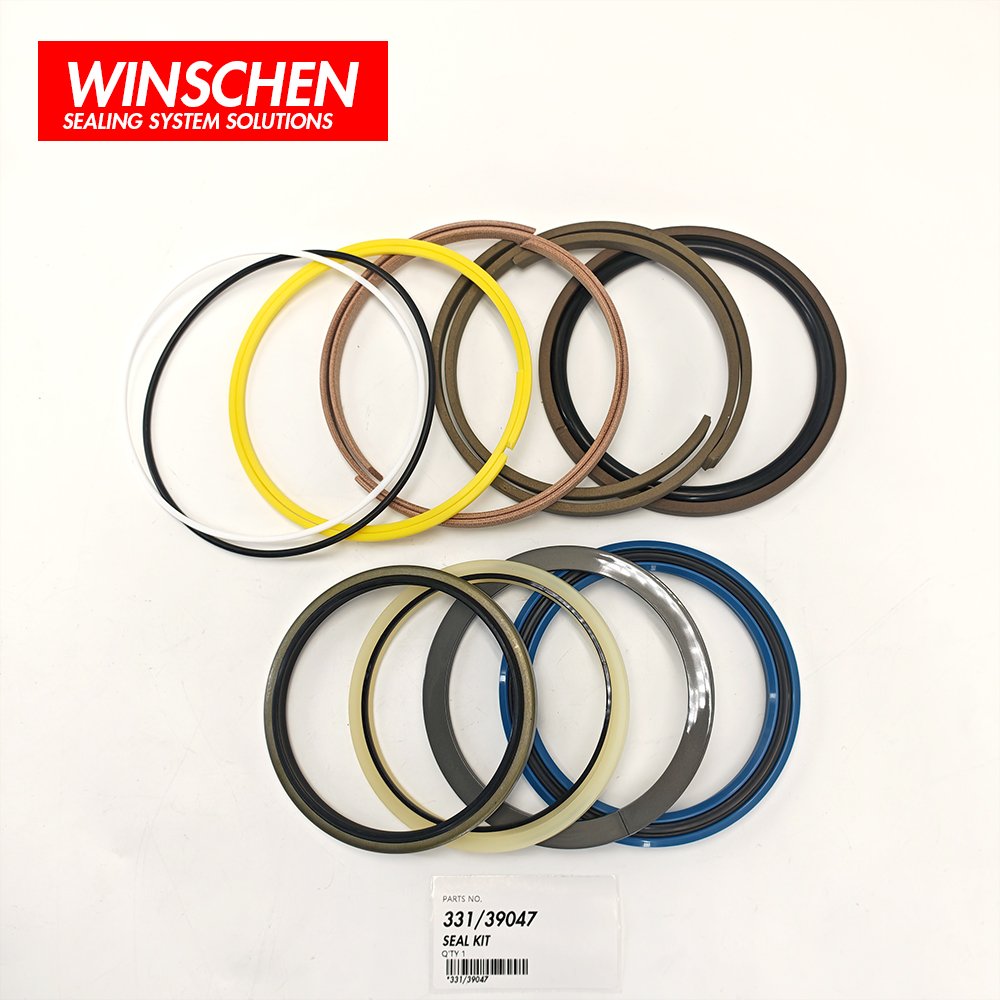

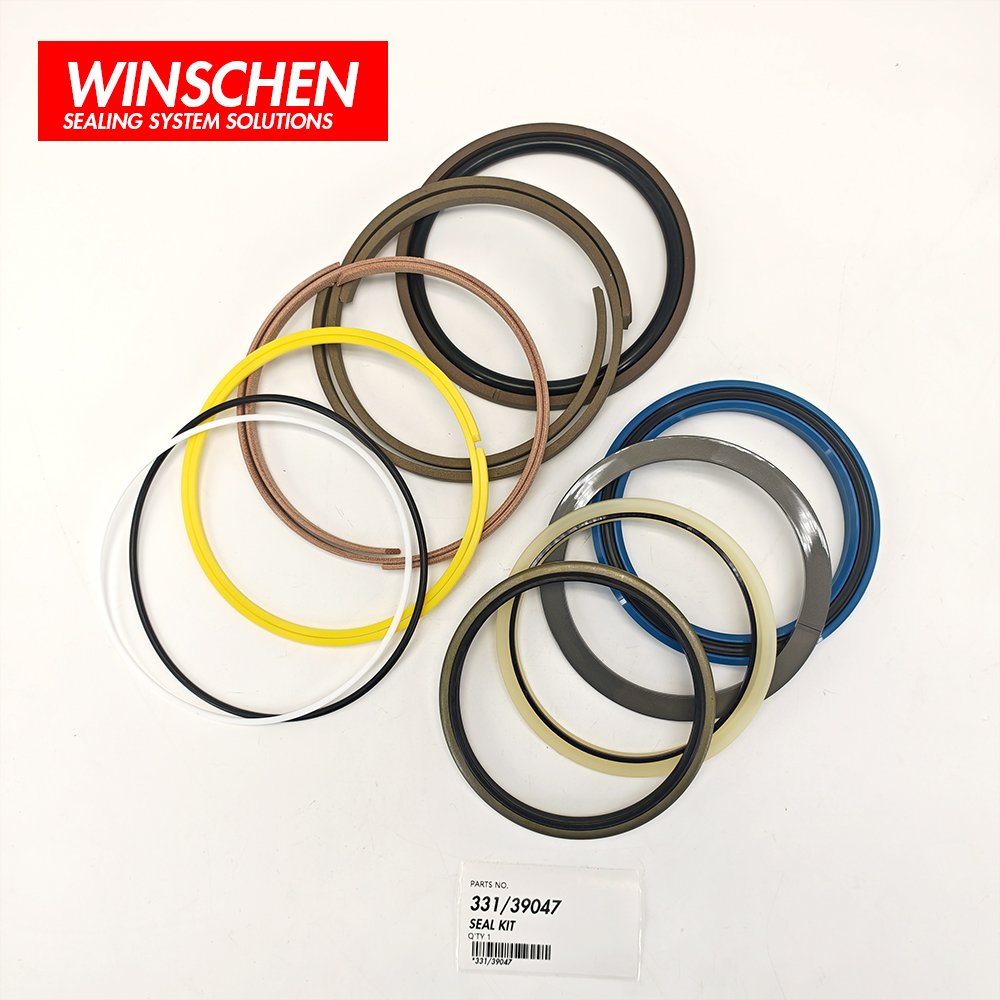

331/39047 Dipper Arm Cylinder Seal Kit for JCB JS200 JS210 JS220 Excavator
331/39047 Dipper Arm Cylinder Seal Kit for JCB JS200 JS210 JS220 Excavator. Premium aftermarket replacement for hydraulic cylinder repair. Please confirm the OEM part number and machine.
Brand: WINSCHEN
Country of Origin: China
MOQ: 1 SET
Dispatch time: 1-3 business days
SKU: JCB-331/39047
Share This Product
331/39047 Dipper Arm Cylinder Seal Kit for JCB Equipment
Eliminate hydraulic fluid leaks and restore the powerful pulling and digging capabilities of your heavy equipment with the WINSCHEN premium 331/39047 Dipper Arm Cylinder Seal Kit. Engineered to withstand the extreme operational pressures, heavy payloads, and rugged environments of earthmoving and construction, this high-quality aftermarket repair kit ensures your JCB excavator operates safely and efficiently with zero pressure loss.
Key Features
- Manufactured to strict OEM dimensions for a 130mm bore x 95mm rod configuration, ensuring a precise and seamless fit for the dipper (arm) hydraulic cylinders used in JCB JS200, JS210, and JS220 series excavators.
- Constructed from advanced elastomeric, polyurethane, and heavy-duty wear-resistant materials to provide exceptional resistance to high hydraulic pressure, continuous rod friction, and extreme thermal variations.
- Effectively eliminates internal fluid bypass and external leakage, preventing dipper arm drift and maintaining highly responsive, consistent mechanical force during tough digging operations.
- This comprehensive seal kit includes all essential precision components—such as U-rings, wiper seals, O-rings, backup rings, piston seals, buffer rings, slide rings, and cushion rings—required for a complete and reliable cylinder overhaul.
- A cost-effective, highly reliable aftermarket alternative that meets or exceeds original equipment standards, minimizing your machine’s routine maintenance downtime.
Compatible Equipment Models
Excavators: Tracked Excavators (JS Series): JS200, JS210, JS220 JCB
Seal Kit Related Parts
| Part No | Qty | Parts name |
|---|---|---|
| 331/39059 | 1 | U-Ring |
| 331/39063 | 1 | Ring Back-Up |
| LAU0173 | 1 | Seal Wiper |
| 331/39065 | 1 | O-Ring |
| 331/39066 | 1 | Ring Back-Up |
| 331/39069 | 1 | Seal Cushion |
| 331/39070 | 1 | Seal Piston |
| 331/39071 | 2 | Ring Back-Up |
| 331/39067 | 2 | Ring Buffer |
| 331/39073 | 2 | Ring Slide |
| 331/39074 | 2 | Ring Slide |
| 331/39054 | 1 | Ring Cushion |
| 331/39052 | 1 | Ring Cushion |
| LAU0130 | 4 | Seal Wiper |
| 331/39056 | 1 | Seal Cushion |
Specifications
| Part Number | 331/39047 (33139047) |
| Part Type | Dipper Arm Cylinder Seal Kit / Service Kit |
| Application | Hydraulic Cylinder Rebuild |
| Brand | WINSCHEN |
| Country of Origin | China |
| SKU | JCB-331/39047 |
| MOQ | 1 SET |
| Delivery Time | 1-3 business days |
To ensure proper fitment, please verify your machine’s exact model and original hydraulic cylinder configuration with our support team prior to purchasing. We offer fast global shipping to keep your heavy machinery operating efficiently.
Related JCB Seal Kit Categories
Browse more JCB replacement parts or compare other hydraulic cylinder seal kits. For fitment confirmation, send the OEM part number, machine model through our inquiry form or WhatsApp.
| OEM Part Number | 331/39047 |
|---|---|
| Equipment Brand | JCB |
| Product Type | Dipper Arm Cylinder Seal Kit |
| Condition | Premium Aftermarket Replacement |
